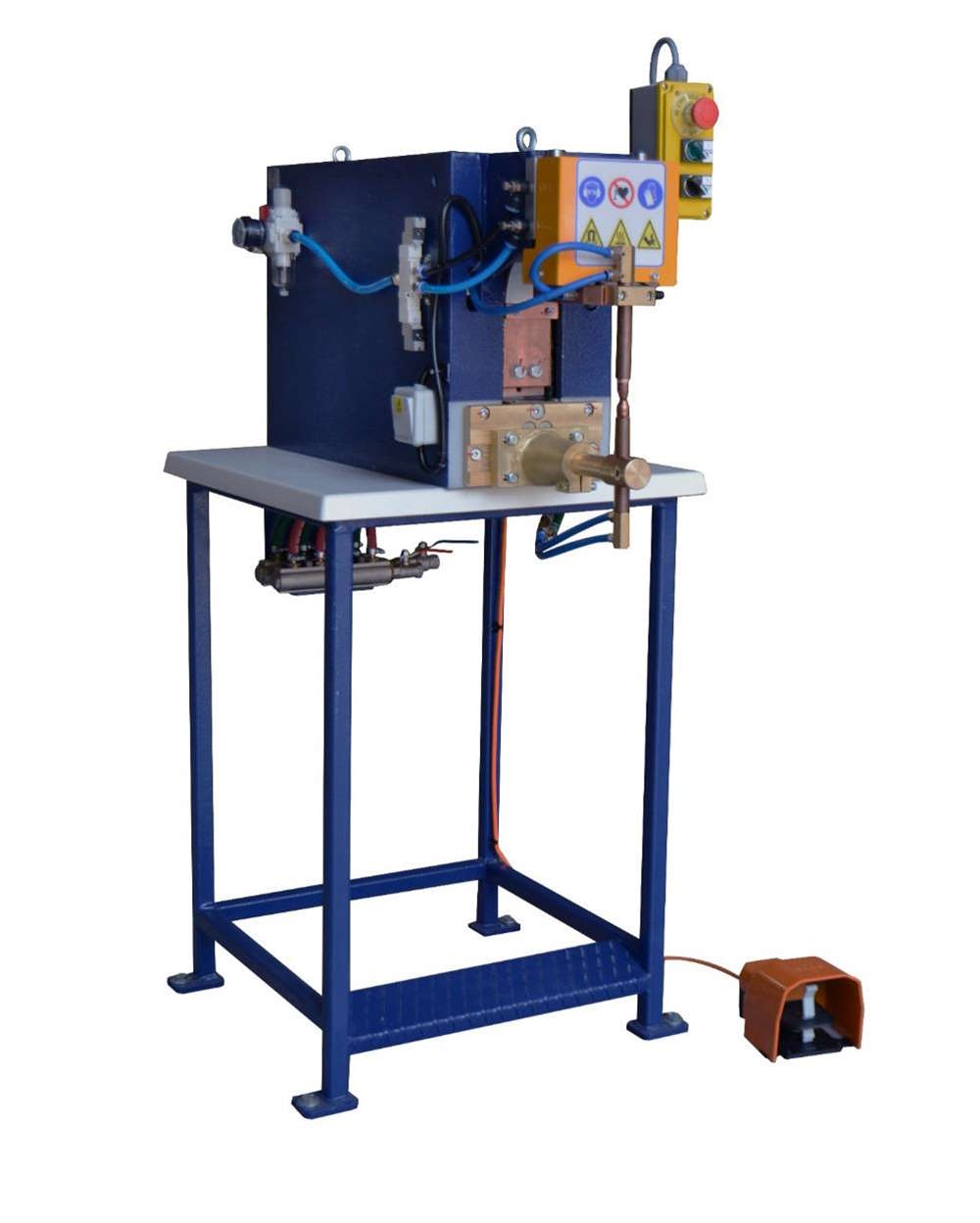

Bench Type Welding Machines
Options :
- Spot
- Projection
- Spot/Projection
- PLC-HMI
- Linear Sensor ( upper )
- Stroke Adjustable Cylinder
- Stroke End Adjustable Cylinder
- Double Stroke Cylinder
- Flow&Temperature Sensor
- Proportional Valve
- Pressure Sensor
- Barcode Scanner
- Lower Table
- Double Hand Button
Timers :
- Safco
- Dengensha
- Bosch Rexroth
Rated Power at 50% 50-60Hz AC |
kVA | 30 | 45 | 60 |
Secondary Short Circuit Current (%50) |
kA | 15 | 22 | 25 |
Rated Power at 50% 1000Hz DC |
kVA | 30 2 DİYOT |
40 2 DİYOT |
60 2 DİYOT |
Secondary Short Circuit Current (%20-15ms) |
kA | 19 | 15 | 15 |
Projection Arm Length | mm | 150 | 150 | 150 |
Spot Arm Length | mm | 230 | 230 | 230 |
Distance Between Projection Tables | mm | 100/150 | 100/150 | 100/150 |
Force (6 bar max) |
daN | 75-300 | 75-300 | 75-300 |
Stroke (max) (mm) | mm | 50 | 50 | 75 |
