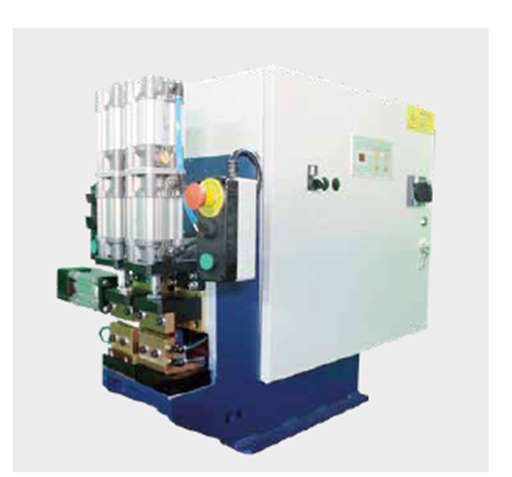

Butt Welding Resistance Welding Machines

Standart Features:

  • 16 Program Electronic Control
  • Air Switch
  • Foot Pedal

Optional Features:

  • 256 Program Microprocessor Control
  • Constant Current Mode
  • Acces to Welding Parameters by PC Connection
  • Servo Driven
  • Double Hand Start
  • Flow and Temperature Sensor
  • Spot Counter
Butt Welding
Technical Specifications
50Hz AC PP-30-125-S PP-60-125-S
Single Phase Input 50Hz V 400 AC 400 AC
Rated Power (%50 duty) kVA 30 63
Secondary Short Circuit Current (%50) I 2/50 kA 6,4 10,2
Secondary Voltage V 4,65 7,2
Fuse A 80 160
Electrode Force (6 bar) daN 960 960
Air Pressure bar 2-6 2-6
Cooling Water Temperature °C 18-21 18-21
Water Consumption (3 bar) It/dak 8 8
Distance Between Projection Plates mm 200 200
Throat Depth (Projection) mm 200-600 200-600
Stroke mm 100 100
Dimensions (W / L / H) mm 600x900x1300 600x900x1300
Weight kg 167 200
