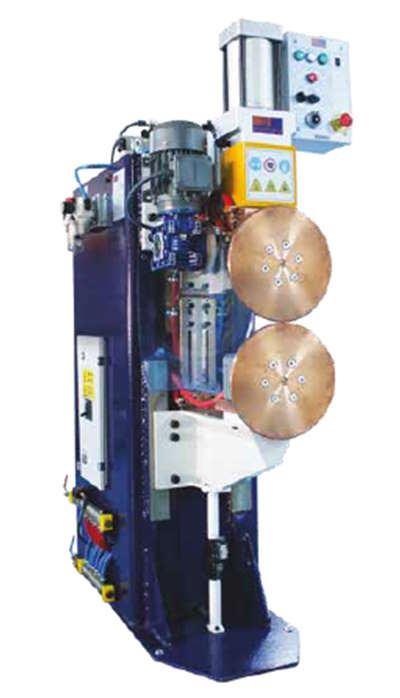

Seam Welding Machines

Three Types:

  • DKE1 Top Driven
  • DKE2 Bottom Driven
  • DKE3 Top&Bottom Driven

Standart Features:

  • 16 Program Electronic Control
  • Flow and Air Sensor
  • Air Switch
  • Foot Pedal

Optional Features:

  • 64 Program Microprocessor Control
  • Constant Current Mode
  • Acces to Welding Parameters by PC Connection
  • Servo Motor Driven
  • Propotional Valve
  • Double Hand Start
  • Flow and Temperature Sensor
  • Disc Dresser (Auto/Manual)
  • Welding Jig
Seam Welding

Standart Features:

  • 16 Program Electronic Control
  • Flow and Air Sensor
  • Air Switch
  • Foot Pedal

Optional Features:

  • 64 Program Microprocessor Control
  • Constant Current Mode
  • Acces to Welding Parameters by PC Connection
  • Servo Motor Driven
  • Propotional Valve
  • Double Hand Start
  • Flow and Temperature Sensor
  • Disc Dresser (Auto/Manual)
  • Welding Jig
Seam Welding
Teknik Özellikler
DK-120-125-E-N-M MFDC DK-150-125-E-N-M
Single Phase Input 50Hz AC / 3 Phase DC V 400 AC 500 DC
Rated Power (%50 duty) kVA 121 165
Secondary Short Circuit Current (%50 duty) I2/50 kA 13,6 16
Secondary Voltage V 6,7 - 7,3 - 8,2 - 8,9 7,3 - 10,3
Fuse A 250 250
Electrode Force (6 bar) daN 180 - 750 180 - 750
Air Pressure bar 2 - 6 2 - 6
Cooling Water Temperature °C 15 - 25 15 - 25
Water Consumption (3 bar) lt/min 20 20
Arm Distance mm 100 - 350 100 - 350
Throat Depth (Projection) mm 400 / 500 / 600 400 / 500 / 600
Stroke mm 100 100
Disc Velocity m/min max. 7 max. 7
Dimensions (W / L / H) mm 550x1400x1800 550x1400x1800
Weight kg 900 800
