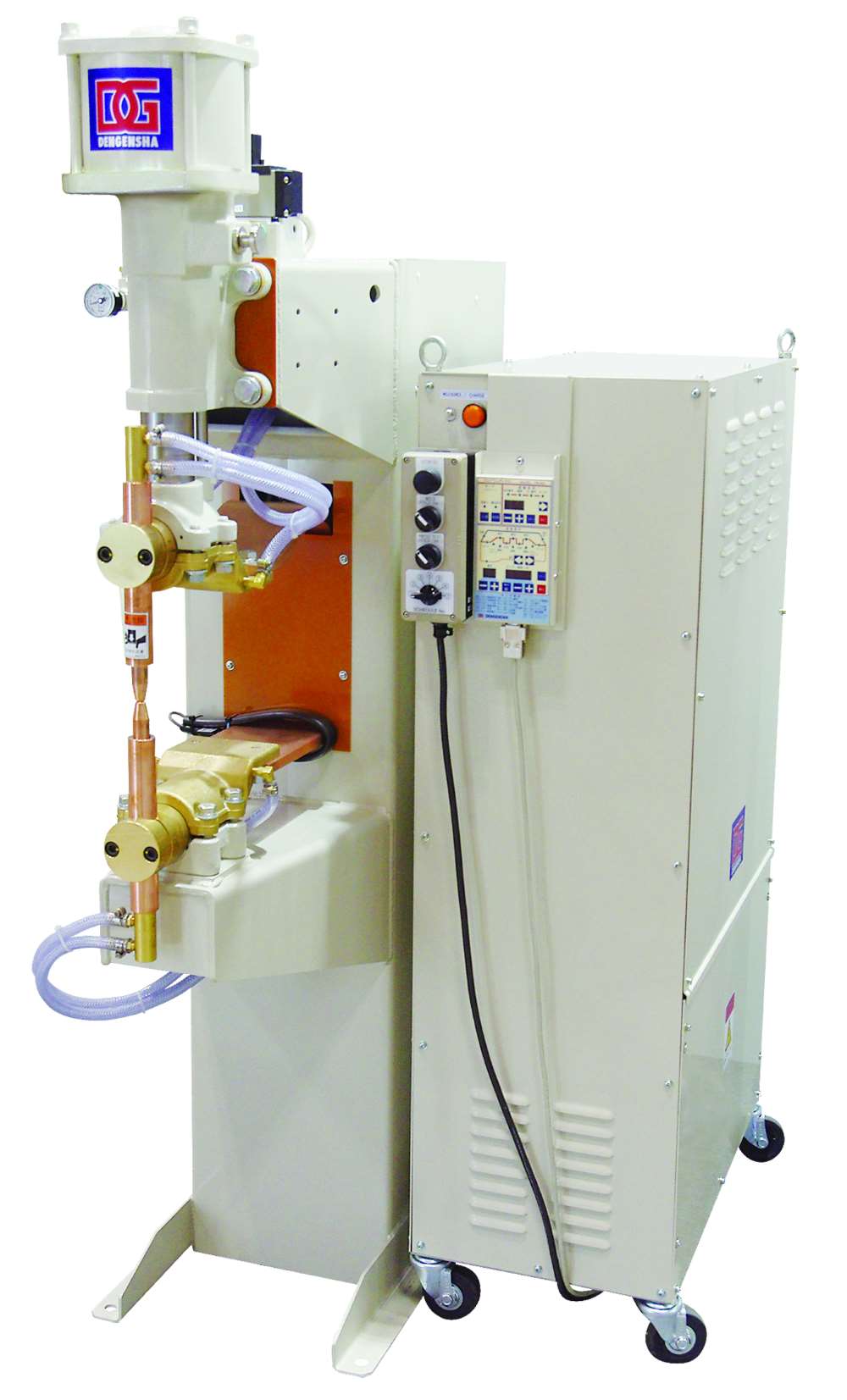

Capacitor Discharge Spot / Projection Resistance Welding Machines
Specifications:
- Power Supply : 200V, 6kA
- Maximum Energy : 3000 joule
- Short Circuit Current : 50Ka

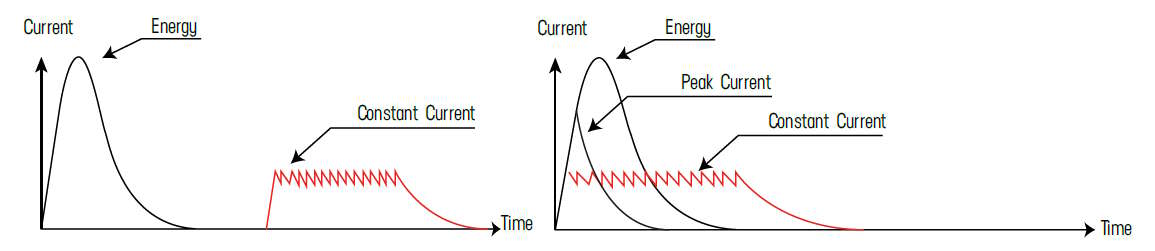

Three Current Control Modes:
- Energy
- Peak Current
- Constant Current
Features:
- Smaller footprint with cost - efficient compact design.
- Weld current as high as 50kA, yet requiring only a small 6kVA and 200V power supply (a step-down transformer provided).
- Unique selectable current control modes will enable !ne tuning of weld quality.
- High current in short bursts allows minimum heat transfer and workpiece distortion.
- Consistent welding during unstable power supply conditions.
- Maximum energy output of 3,000 joule.
- Consistent current feedback standard.
- Ideal for welding small projection parts on high-strength steel.
Technical Specifications | |||
---|---|---|---|
① | Series name | NDZ | NDZ series |
② | Weld controls | CA 0 | Capacitance discharge |
③ | Throat depth | 4 | 400mm |
④ | Electrode force | 6 | 6kN(Hornφ60)(Electrode holderφ25)(Electrodeφ16) |
7 | 6kN(Hornφ70)(Electrode holderφ32)(Electrodeφ20) | ||
8 | 6kN(Hornφ70)(Electrode holderφ32)(Electrodeφ16) | ||
1 | 10kN(Hornφ70)(Electrode holderφ32)(Electrodeφ20) | ||
A | 10kN(Hornφ70)(Electrode holderφ32)(Electrodeφ16) | ||
⑤ | Stroke | B | Stroke 75mm |
⑥ | Application | S | Spot |
N | Nut | ||
L | With detect nutless and wrong nut | ||
R | For automatic cell | ||
B | Bolt | ||
M | With detect nutless and wrong bolt | ||
T | For automatic cell | ||
⑦ | Specification | U | Conforms to UL/CSA |
C | CE | ||
⑧ | Power source | Y | 200V±15% 50/60Hz |
⑨ | Revision | A,B,C,D,・・・ |
Click here for more info. |
