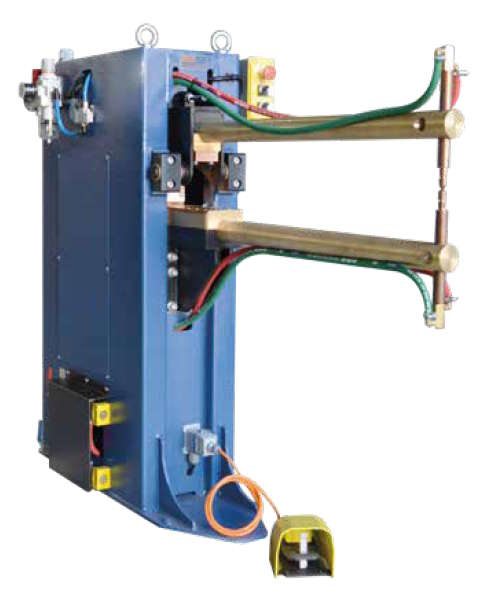

Rocker Arm Resistance Welding Machines
Options :
- Spot
- Angular Electrode
- PLC-HMI
- Stroke Adjustable Cylinder
- Stroke End Adjustable Cylinder
- Double Stroke Cylinder
- Propotional Valve
- Pressure Sensor
- Double Hand Button
Timers :
- Safco
- Dengensha
- Bosch Rexroth
| Rated Power at 50% 50-60Hz AC |
kVA | 30 | 45 | 60 | 90 |
| Secondary Short Circuit Current (%50) |
kA | 15 | 22 | 25 | 32 |
| Rated Power at 50% 1000Hz DC |
kVA | 30 2 DİYOT |
40 2 DİYOT |
60 2 DİYOT |
80 2 DİYOT |
| Secondary Short Circuit Current (%20-15ms) |
kA | 19 | 15 | 15 | 15 |
| Spot Arm Length | mm | 400/600 | 400/600 | 400/600 | 400/600 |
| Distance Between Projection Tables | mm | 200 | 200 | 200 | 200 |
| Force (6 bar max) |
daN | 180 | 180 | 180 | 180 |
| Stroke (max) (mm) | mm | 175 | 175 | 175 | 175 |
 |
